Why “Food-Grade” Doesn’t Prevent Seal Failures in CIP Environments
Elastomers are often treated as interchangeable consumables. In food production, they are one of the most common failure points and one of the most preventable.
The typical failure story goes like this. A pneumatic valve is specified with food-compatible seals, installed correctly, and performs fine through commissioning. A few months later, maintenance starts seeing slow response and intermittent leaks. Seals get replaced. The same failure shows up again. What looks like a wear problem is actually a chemistry problem: the seal material was selected by default, not by the actual CIP conditions it would see.

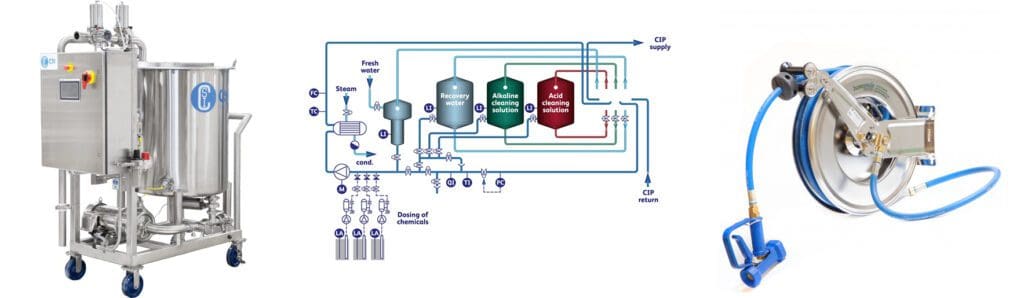

Compressed air itself is relatively benign. CIP chemistry is not. A typical cleaning cycle exposes seals to hot caustic (often 2–5% sodium hydroxide), acid rinses (nitric or phosphoric), oxidizing sanitizers (chlorine or peracetic acid), and rapid temperature swings — sometimes multiple times per shift. Each elastomer responds differently to that combination. Understanding how they differ, and where lubricant and FDA compliance fit in, prevents a predictable failure from becoming a recurring one.
How CIP Chemistry and Temperature Cycling Degrade Elastomer Seals
Before comparing materials, it helps to understand the failure mechanisms. CIP chemistry attacks elastomers through several pathways simultaneously:
Chemical swelling occurs when caustic or sanitizer molecules penetrate the elastomer matrix, causing the seal to expand, lose dimensional stability, and eventually extrude from its groove or fail to seal properly. Hardening and cracking happens when oxidizing sanitizers or repeated thermal cycling break down the polymer chain, making the seal brittle. Compression set develops when seals permanently deform under load and lose the resilience needed to maintain contact — leading to slow leaks that worsen gradually rather than failing suddenly.
In food plant conditions, these mechanisms are compounded by frequency. A component seeing one CIP cycle per day accumulates more than 300 aggressive chemical exposures per year. A seal that “lasts years” in dry industrial service may fail in months under those conditions.
Buna-N (Nitrile) Seals in Food Processing: Where They Work and Where They Don’t
Buna-N works well with oils and hydrocarbons, which is why it’s standard in industrial pneumatics. In dry air service or mild wash environments, it performs reliably. In food plant CIP environments, the limitations become apparent quickly.
Hot caustic solutions cause Buna-N to swell. Repeated sanitizer exposure — particularly chlorine or peracetic acid — accelerates hardening and cracking. The result is compression set and leakage, typically showing up months after installation rather than immediately, which is why it keeps getting specified: it passes commissioning convincingly.
Maintenance teams often recognize Buna-N failure by the pattern — seals that look intact but no longer seal, or that crack when removed rather than deforming cleanly. In applications with daily CIP exposure to caustic and sanitizer, Buna-N is rarely the right default.
EPDM Elastomer Performance in Caustic CIP: Strengths and Limitations
EPDM handles hot water and caustic solutions well, making it a reasonable choice for many CIP-heavy pneumatic applications. It resists sodium hydroxide at elevated temperatures better than Buna-N and performs reliably through steam cleaning cycles within its temperature range.
The limitation is fat and oil compatibility. In dairy applications with fat-containing products, sauce lines, or environments with oil mist from nearby equipment, EPDM can absorb oils and swell. Seal extrusion and sticking after product changeovers are common signs. EPDM also has upper temperature limits that can be tested during high-temperature CIP or SIP cycles in aseptic applications.
For beverage and brewery applications with caustic-dominant CIP and minimal fat exposure, EPDM is often a solid choice. For dairy or multi-product lines with variable chemistry, it requires more careful evaluation.
FKM (Viton) Seals for Food Applications: Chemical Resistance, Trade-offs, and When to Specify
FKM (commonly known by the brand name Viton) offers the broadest chemical resistance of the three common elastomers. It handles caustic, acids, chlorine, peracetic acid, and most other food plant sanitizers well, across a wider temperature range than EPDM. For high-exposure zones — direct CIP spray, multiple daily cleaning cycles, or applications with variable chemistry — FKM is frequently the most durable option.
The trade-offs are cost and low-temperature performance. FKM costs more than both Buna-N and EPDM at the seal level, and it can stiffen in cold environments, affecting sealing in refrigerated zones or cold-start conditions.
The practical approach is to reserve FKM for high-exposure, high-consequence applications — critical CIP valves, components in direct washdown zones, or applications where repeated seal replacement has already established a failure pattern — rather than specifying it everywhere by default.

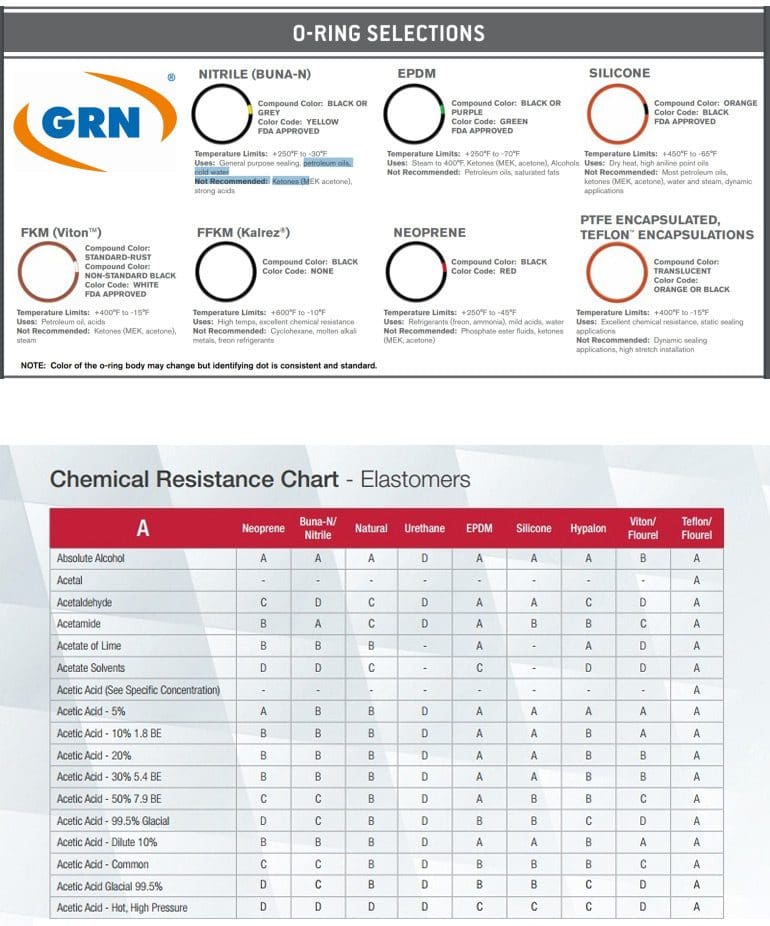

Selecting Elastomers Based on Actual Exposure: A Practical Framework
The right seal depends on the full exposure profile, not just one variable. Before specifying, map all of the conditions the seal will actually see:
- Product chemistry: fats, sugars, acids, proteins
- CIP chemistry and concentration: caustic type and percentage, acid rinse, sanitizer type
- Temperature range during both production and cleaning
- Frequency of cleaning cycles and duration of chemical contact
For designers, this means specifying elastomers intentionally rather than accepting standard seals from a component catalog. For maintenance teams, repeated seal degradation following CIP changes — new sanitizer chemistry, higher caustic concentration, increased cleaning frequency — is a strong signal that elastomer compatibility, not installation quality, is the root cause.
Food-Grade Lubricants in Washdown Zones: NSF H1 Requirements and Where They Fall Short
Lubrication is often the last thing engineers think about in food-grade pneumatics. It’s also a common contributor to premature wear that gets misdiagnosed as a seal or component quality problem.
NSF H1 registration indicates that a lubricant is acceptable for incidental food contact. It does not guarantee resistance to hot water, caustic washout, or sanitizer exposure. In direct washdown environments, standard NSF H1 lubricants are frequently stripped away during CIP, leaving components running dry. Wear accelerates, seals degrade faster, and in some applications, metal particles can migrate.
In washdown zones, engineers often move toward one of three alternatives: self-lubricating component materials that don’t require applied lubricants, dry-running designs that tolerate some friction, or external isolation of lubricated mechanisms from direct spray. Each involves trade-offs in actuation speed or component cost, but they eliminate the unpredictability of lubricant washout during sanitation.
Reserve NSF H1 lubricants for components that are protected from direct CIP spray, where relubrication intervals can be reliably controlled and maintained. Treat repeated internal wear following sanitation cycles as a lubrication-system failure worth investigating, not just a component-quality issue.
FDA 21 CFR Compliance for Pneumatic Components: What It Covers and What It Doesn’t
“FDA compliant” is one of the most misunderstood phrases in food equipment specification. Engineers commonly assume it covers the entire assembled component. The regulation is more specific than that.
FDA regulations generally address materials, not finished assemblies. A seal compound may meet FDA 21 CFR requirements, but that does not automatically make the assembled valve FDA-approved. There is no blanket FDA approval for most pneumatic components.
For pneumatic components, the most relevant sections address indirect food additives — elastomers and polymers in repeated contact with food or food-contact surfaces. Compliance means the material formulation meets the extraction and composition limits defined in the regulation. It does not address cleanability, sanitary design, or suitability for CIP chemistry. Those aspects fall under equipment design standards and food safety programs.
When a component fails and contaminates product, auditors and quality teams ask for material certifications, traceability, and documented justification for why the material was appropriate for the environment. Vague “food-grade” language rarely holds up under scrutiny. Designers should specify materials with documented compliance and retain that documentation. Maintenance teams should do the same for replacement parts, especially in critical zones.
Aligning Seal, Lubricant, and Compliance Decisions with Actual Production Conditions
Most elastomer and lubricant failures in food-grade pneumatics are not caused by negligence. They come from applying general industrial defaults to environments that are fundamentally different — and from treating “food-grade” as a single threshold rather than a set of specific, verifiable material properties.
When elastomer selection, lubrication strategy, and regulatory documentation align with how the equipment is actually used and cleaned, components last longer, maintenance becomes more predictable, and food safety risk decreases. When they don’t, failures tend to repeat quietly — and show up at exactly the wrong time.
FAQ
Why do elastomer seals fail in food processing pneumatic systems despite being rated for food contact?
Elastomer seal failures in food processing typically result from CIP chemistry exposure rather than air pressure or mechanical wear. Buna-N seals commonly swell with caustic and crack with sanitizers. EPDM handles caustic well but absorbs fats and oils, causing swelling in dairy or oil-containing applications. FKM offers superior chemical resistance across caustic, acids, and sanitizers but costs more. Select elastomers based on the complete exposure profile — CIP chemistry, sanitizer type, temperature cycling, and product contact — not just a “food-grade” rating.
How do I ensure pneumatic component lubricants meet food safety requirements in washdown environments?
NSF H1 registration indicates a lubricant is acceptable for incidental food contact but does not guarantee resistance to hot water, caustic washout, or sanitizer exposure during CIP. In direct washdown environments, lubricants are often stripped away during cleaning, leaving components dry and accelerating wear. For washdown zones, consider dry-running components, self-lubricating materials, or external isolation of lubricated mechanisms. Reserve NSF H1 lubricants for components protected from direct CIP spray where relubrication intervals can be controlled and maintained.
What does “FDA compliant” actually mean for pneumatic components used in food processing?
FDA compliance for pneumatic components refers to the individual materials meeting composition and extraction limits defined in FDA 21 CFR regulations — not approval of the finished assembly. There is no blanket FDA approval for most pneumatic components. A compliant seal compound does not mean the assembled valve is FDA-approved, and compliance says nothing about cleanability, sanitary design, or compatibility with CIP chemistry. When specifying components for food applications, request material certifications with specific regulatory references, and retain that documentation for audits and failure investigations.
