Case Study: Dual Channel Tourniquet Device

Challenge

A medical device manufacturer needed to develop a precision tourniquet system capable of independently controlling pressure in two separate channels. The device required consistent, accurate pressure application across surgical procedures to maintain a bloodless field during operations such as knee replacements. The system needed to provide reliable performance in operating room settings.

Technical Hurdles

• Achieving precise pneumatic pressure control with minimal variation
• Ensuring rapid response to changing conditions
• Developing fail-safe mechanisms to prevent over-pressurization
• Miniaturizing the pneumatic components without sacrificing performance
• Creating a user interface that enabled precise monitoring of both channels
• Synchronizing timing for pulse-matched operation to restrict blood flow during heartbeats

Approach

1. Component evaluation: The engineering team tested multiple pressure regulators and control valves to identify optimal performance characteristics
2. System architecture design: A dual-path pneumatic system was designed with independent control loops and cross-monitoring for safety
3. Prototype development: Working prototypes were built to validate the pressure control algorithms and component integration
4. Usability testing: Medical professionals provided feedback on the control interface and system operation
5. Design for manufacturing: Assembly processes were developed to ensure consistent calibration and performance

Outcome

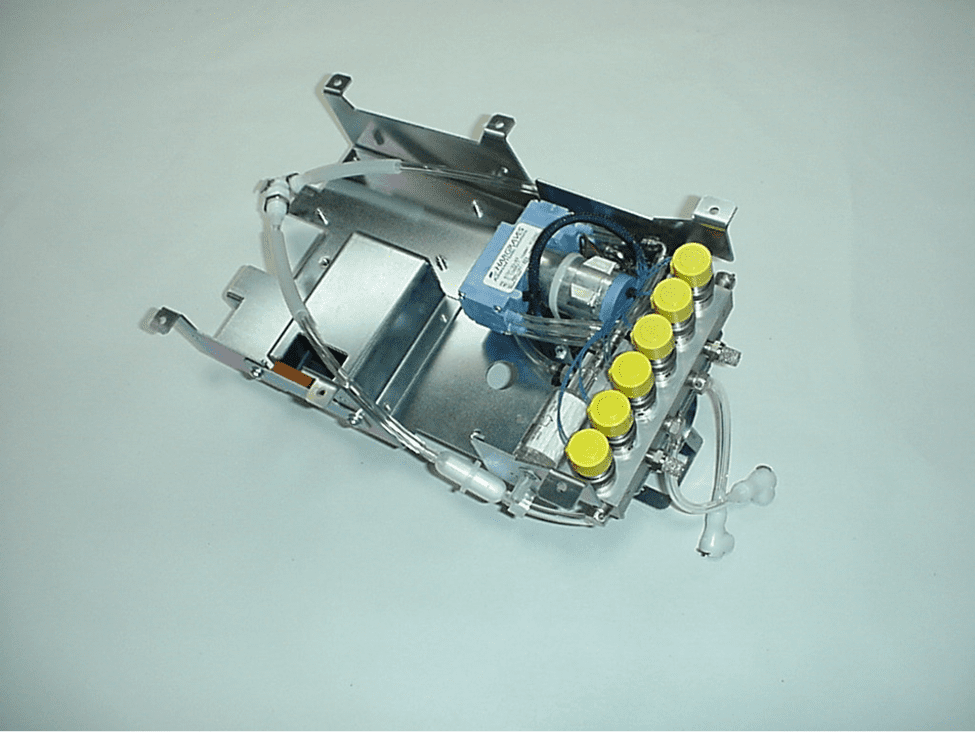

The final dual-channel tourniquet system delivered precise pressure control within ±1 mmHg across its entire operating range. The device incorporated redundant safety systems and intuitive controls while maintaining a compact form factor suitable for operating room environments.

The system effectively applies pressure through two separate cuffs—one placed on the upper thigh and another on the calf—synchronizing with the patient’s pulse to temporarily restrict blood flow and create a bloodless surgical field.

By approaching the design challenges methodically and leveraging expertise in pneumatic control systems, the team delivered a reliable product that improved surgical outcomes and visibility during procedures such as knee replacements.
