If you’ve ever had a machine go down because of a $2 seal, you know how fast a small part can turn into a big problem. Seals and O-rings are rarely the first thing anyone thinks about during maintenance planning — but when one fails, everything stops.
Across industries like aerospace, food processing, and heavy equipment manufacturing, the pattern is the same: seal failures almost always give you a warning before they happen. The key is knowing what to look for. Recognizing these early warning signs can mean the difference between a quick maintenance fix and hours (or days) of lost production.

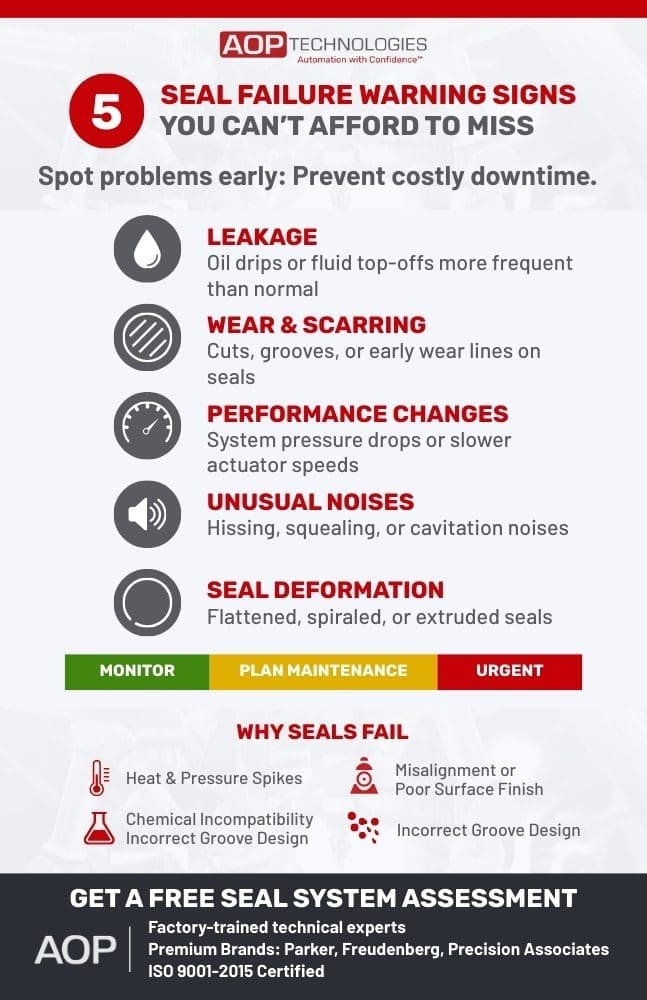

Before a seal fails completely, it almost always shows visible signs of stress or degradation. These physical clues — in texture, color, or shape — reveal different underlying causes. Here are the most common ones to look for and what they can tell you about your system:
- The Subtle Leak That Isn’t “Normal”
- When Rubber Turns to Plastic
- Chunks Missing at the Edges
- The Swollen or Sticky Seal
- Flattened Seals That Don’t Bounce Back
- Wear Tracks and Polished Surfaces
- What a Seal Can Tell You About Your System
The Subtle Leak That Isn’t “Normal”
Let’s start with the most common sign — a small leak. Maybe you notice a thin film of oil around a fitting or a drip at the end of a stroke. It’s tempting to wipe it off and move on, but that’s usually the first indication your seal has started to fail.
Even minor leakage means the sealing force is no longer uniform. It could be from a groove that’s slightly out of tolerance, a hardening O-ring, or thermal cycling that caused the elastomer to lose compression. Under ISO 3601-3 acceptance criteria, any visible leakage is technically a failure — and in the real world, it’s your early warning.
Don’t ignore it. Once pressure starts bypassing a seal, friction and contamination rise quickly, and the failure accelerates.
When Rubber Turns to Plastic
If an O-ring feels stiff, cracked, or brittle, it’s been exposed to more heat, ozone, or chemical attack than it was designed to handle. This is one of the easiest problems to diagnose — and one of the most preventable.
We often see this when a material like nitrile (NBR) is used in a high-temperature hydraulic system or in contact with aggressive cleaning agents. Over time, it loses elasticity, hardens, and can’t rebound after compression.
Chunks Missing at the Edges
If you pull a seal and notice small pieces missing or the edges look chewed, that’s extrusion damage. High system pressure or excessive clearance in the gland allows the O-ring to squeeze into the gap and tear. Once this starts, failure typically occurs quickly.
For high-pressure applications — anything over about 1,500 psi — using backup rings or anti-extrusion devices is a must. They prevent the elastomer from deforming and keep the sealing surface intact. Checking your groove dimensions against ISO 3601-2 standards is also a smart move if you’re seeing repeated failures in the same location.
The Swollen or Sticky Seal
A seal that looks swollen, soft, or sticky has probably been exposed to an incompatible fluid. When an elastomer absorbs additives from oil or hydraulic fluid, it changes size and mechanical strength. This swelling can make installation difficult, but worse, it changes how the seal loads in the groove — leading to leaks or extrusion.
Chemical compatibility charts, such as those based on ASTM D471, are your best reference point. A quick comparison of the fluids in your system with the seal compound can often pinpoint the issue. In some applications, upgrading from NBR to a more chemically resistant material—such as EPDM or FKM—may resolve the problem, but verification through compatibility testing and review of service conditions is always recommended.
Flattened Seals That Don’t Bounce Back
If a seal stays flat after you remove it, it’s taken a “compression set.” In other words, it’s been squeezed so long it can’t spring back to shape. Once that happens, sealing pressure drops off and small leaks begin.
A compression set is usually caused by heat, constant pressure, or improper gland depth. Choosing a material rated for low compression set and replacing seals at regular intervals are simple ways to avoid this. It’s also a good idea to double-check your groove depth against ISO specs — too much squeeze accelerates fatigue.
Wear Tracks and Polished Surfaces
In dynamic applications like cylinders and pumps, seals are constantly in motion. Over time, friction and surface finish become increasingly important. If you see shiny wear tracks or fine grooves on a seal, it means the mating surface is too rough or the lubrication is breaking down.
Always use compatible lubricants during assembly. Surface wear doesn’t happen overnight — it’s a signal that operating conditions need attention before the next maintenance cycle.
What a Seal Can Tell You About Your System
Every failed seal tells a story. A flattened one might point to overheating; a swollen one to chemical incompatibility; a torn one to pressure spikes or incorrect clearances. The trick is to read those clues before they lead to unplanned downtime.
At AOP Technologies, we often help customers diagnose these problems by reviewing worn seals under magnification and comparing the damage against known failure modes. From there, we can recommend the right material or groove adjustment to prevent it from happening again.
Get Ahead of the Failure Curve
Seal degradation doesn’t happen instantly. It builds slowly — heat, pressure, motion, and chemistry all working together over time. Adding a simple inspection step to your maintenance routine can prevent most unplanned failures.
