The cost of downtime is never just the repair bill. In every industry, equipment stoppages initially appear to be a maintenance cost—parts, labor, and perhaps a service call. But the true financial and operational burden is much larger. Downtime multiplies through idle labor, lost throughput, quality scrap, rescheduling, and contractual penalties. For regulated or mission-critical industries, the consequences extend to safety, compliance, and readiness.
Seal failures are a common but under-recognized trigger of downtime. O-rings, gaskets, and lip seals that cost a few dollars can stall production lines, contaminate product, or ground aerospace assets. The following sections highlight how downtime impacts three key industries—automation & robotics, food & beverage production, and aerospace & defense—and provide a framework for reducing risk.
Automation and Robotics: Uptime as Currency
Modern automated manufacturing depends on continuous throughput.
In a robotic cell, a failed pneumatic seal or robotic joint seal not only slows a cycle but also halts upstream and downstream processes. With takt times measured in seconds, downtime costs often reach $1,000–$3,000 per hour, excluding penalties for missed deliveries.
Seal failures manifest differently in automation:
- Pneumatic leaks reduce actuator force and cycle speed, creating scrap and rework.
- Air quality degradation (particulates, oil, moisture beyond ISO 8573 limits) accelerates seal wear and contaminates cylinders.
- Robotic joint seal breaches lead to lubricant loss, backlash, and accuracy drift.
Engineering responses include verifying gland tolerances against ISO 3601-2, validating elastomer compounds against lubricants and cleaning chemicals, and prioritizing high-cycle actuators for upgraded compounds (e.g., switching from NBR to FKM or PTFE). Flow monitoring, leak detection, and oil analysis can shift failures from unplanned to scheduled interventions.
Key takeaway: In automation, uptime is the currency. Commodity seals compromise output, while validated, engineered sealing solutions preserve throughput and delivery reliability.

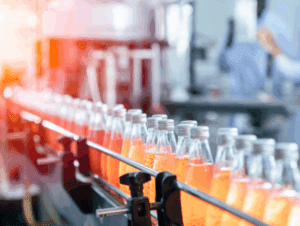

Food & Beverage Production: Downtime Risks Food Safety
Food and beverage plants operate under unique financial and regulatory pressures. A filler line stoppage may seem to cost only $500–$1,200 per hour in lost throughput, but a single seal failure can scrap $ 50,000 or more of product, trigger sanitation cycles, and initiate compliance audits.
Seal failures in this sector cascade because of:
- Chemical and thermal cycling: CIP and SIP cycles expose seals to sodium hydroxide, peracetic acid, and 130–150 °C steam. Non-compliant NBR seals embrittle quickly.
- Regulatory compliance: Seals must meet FDA 21 CFR 177.2600 and NSF/ANSI 51 standards. Commodity substitutions often fail this test.
- Dimensional integrity: Even minor deviations from ISO 3601-2 gland tolerances cause extrusion risks, exacerbated by thermal cycling.
ASTM D471 immersion testing, combined with FDA/NSF certification, provides empirical assurance of compatibility. Proper material choices—EPDM, FKM, PTFE—extend service life and prevent bacterial harborage points.
Key takeaway: In food production, downtime results in both lost revenue and compromised safety. Specifying engineered sealing solutions is a regulatory necessity, not just a maintenance choice.

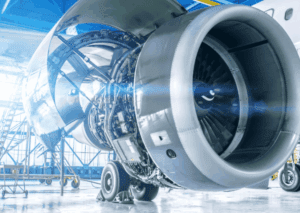

Aerospace and Defense: Downtime Halts Missions
In aerospace and defense, downtime has consequences far beyond
production costs. Assembly line stoppages at OEMs can exceed $20,000 per hour. For defense systems, downtime translates to missed readiness targets, grounded aircraft, or mission delays.
Seal issues here are amplified by the sector’s reliance on precision, safety, and standards compliance:
- Fluid compatibility: Elastomers not certified to AMS or MIL-SPEC standards (e.g., using NBR in Skydrol systems) swell, soften, and fail.
- Contamination risk: A breached seal can push particulate levels above ISO 4406, damaging servo valves and controls.
- Tolerance demands: High-pressure hydraulics (>3,000 psi) require grooves compliant with AS4716; small deviations create extrusion risks.
Engineering safeguards include ASTM D471 testing against aerospace fluids, dimensional checks against ISO 3601-2 and AS4716, and integration of oil analysis and contamination monitoring for predictive alerts.
Key takeaway: In aerospace and defense, downtime threatens both contracts and missions. Seal selection must be treated as part of engineered sealing solutions, demanding a comprehensive evaluation that extends well beyond initial acquisition cost.
A Cross-Industry Framework for Reliability
Despite industry differences, the technical playbook for preventing downtime has common themes:
- Criticality ranking: Identify assets where downtime costs multiply fastest.
- Material compatibility: Validate elastomers against actual fluids, chemicals, and temperatures (ASTM, FDA/NSF, AMS/MIL-SPEC as relevant).
- Dimensional compliance: Verify groove and housing tolerances against ISO 3601-2, AS4716, or sector-specific standards.
- Lifecycle costing: Compare seal cost per operating hour against downtime multipliers; premium materials often pay for themselves.
- Preventive monitoring: Use leak detection, ΔP monitoring, and oil/air analysis to replace seals before failures cascade.
How AOP Technologies Supports Reliability
AOP Technologies is an ISO 9001:2015-certified, knowledge-based distributor specializing in engineered sealing solutions. We partner with premium manufacturers such as Freudenberg, Parker Hannifin, and Precision Associates to provide:
- Application-specific material and compound guidance
- Standards-based gland and housing reviews
- Kitting, labeling, and traceability for correct installation
- Coordination with OEM/manufacturer engineering resources
Our role is not to sell interchangeable commodities, but to deliver technical support that reduces unplanned downtime and lowers cost per operating hour.
Next Steps for Reliability Leaders
Downtime may look different in every industry—but the path to preventing it is remarkably consistent.
- Review critical assets: Identify which systems cause the greatest operational and financial losses when they stop.
- Validate materials: Confirm that every seal compound is compatible with real-world fluids, temperatures, and pressures using the appropriate ASTM, FDA/NSF, or AMS/MIL-SPEC data.
- Verify tolerances: Check grooves and housings against ISO 3601-2 or sector-specific standards such as AS4716. Even minor deviations can shorten seal life.
- Quantify impact: Model the total cost of downtime—including labor, scrap, freight, and penalties—to prioritize upgrades that yield measurable ROI.
When you’re ready, AOP Technologies can help turn these checks into a structured Reliability Optimization Review—a concise, data-driven assessment that benchmarks your sealing systems against relevant standards and identifies where small issues could create costly downtime.
